Carbon-TI X-ROTOR STEELCARBON 3 CENTER LOCK 140

Ultra-Lightweight Engineering. Precision Braking. Italian Performance.

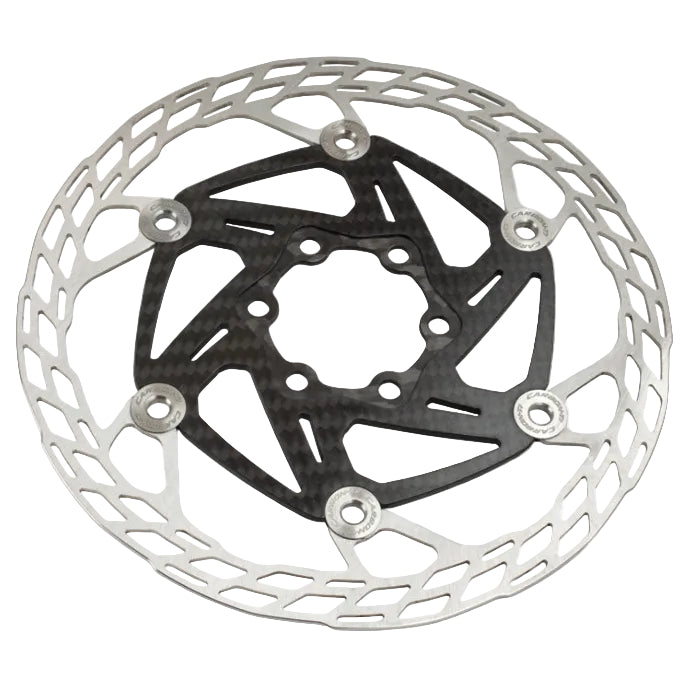

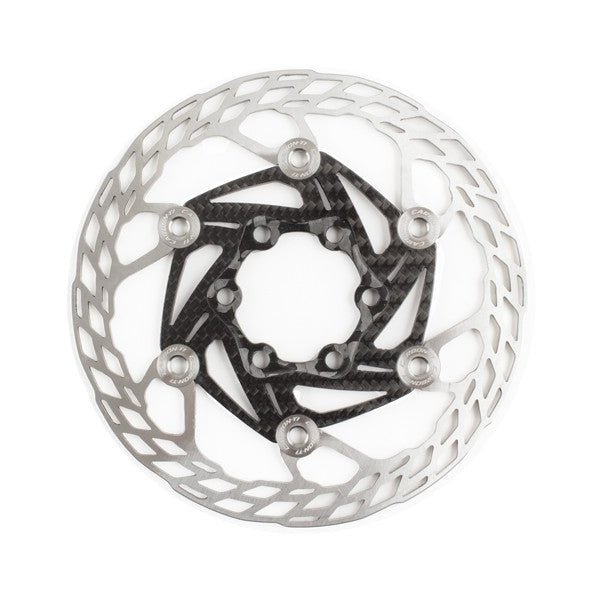

The Carbon-Ti X-Rotor SteelCarbon 3 140mm represents the latest evolution of Carbon-Ti's high-performance disc brake technology, combining advanced materials, precision engineering and an exceptionally lightweight construction for demanding road and mountain bike applications.

Building on the success of the X-Rotor SteelCarbon 2, introduced in 2015, this third-generation rotor features an advanced semi-floating design, combining a high-performance steel braking track, structural carbon fiber inner carrier and Grade 5 titanium hardware.

Weighing just 68 g, the X-Rotor SteelCarbon 3 delivers an outstanding balance of low weight, strength and braking performance, making it an ideal upgrade for cyclists looking to reduce rotational weight while maintaining reliable and consistent braking.

Designed and manufactured entirely in Italy, every component reflects Carbon-Ti's commitment to innovative materials, precision craftsmanship and race-focused performance.

Key Features

• Ultra-Lightweight Construction: Weighing just 68 g, the 140mm rotor combines premium materials to minimize rotational weight without compromising structural integrity.

• Advanced SteelCarbon Design: Hybrid construction featuring a steel braking surface and carbon fiber inner carrier, providing an excellent balance of stiffness, strength and weight.

• Semi-Floating Architecture: Designed to accommodate thermal expansion and support consistent braking performance under demanding conditions.

• Redesigned 1.8mm Steel Braking Track: Optimized to improve braking efficiency, enhance heat dissipation and promote more even brake pad wear.

• UCI-Compliant Rounded Edges: Precision CNC-machined rounded edges improve safety and comply with Union Cycliste Internationale (UCI) regulations.

• Grade 5 Titanium Hardware: Lightweight, high-strength titanium rivets and washers provide durability, corrosion resistance and reliable structural performance.

• 6-Bolt International Standard Mounting: Designed for direct installation on compatible 6-bolt disc brake hubs.

• Broad Brake Pad Compatibility: Compatible with all common brake pad compounds, with organic pads recommended by Carbon-Ti.

• Made in Italy: Designed, developed and manufactured in Italy using premium materials and precision production processes.

SteelCarbon Technology — Engineered for Performance

The X-Rotor SteelCarbon 3 combines multiple high-performance materials to achieve an exceptionally lightweight construction while maintaining the strength and reliability required for demanding braking applications.

High-Performance Steel Braking Track

The redesigned 1.8mm-thick steel braking surface is engineered to improve braking performance, promote efficient heat dissipation and encourage more uniform brake pad wear.

Its refined profile delivers consistent contact with the brake pads, supporting dependable braking across a range of riding conditions.

Structural Carbon Fiber Carrier

The carbon fiber inner body significantly reduces overall rotor weight while providing structural support for the steel braking track.

This hybrid construction contributes to the rotor's exceptionally low 68 g weight.

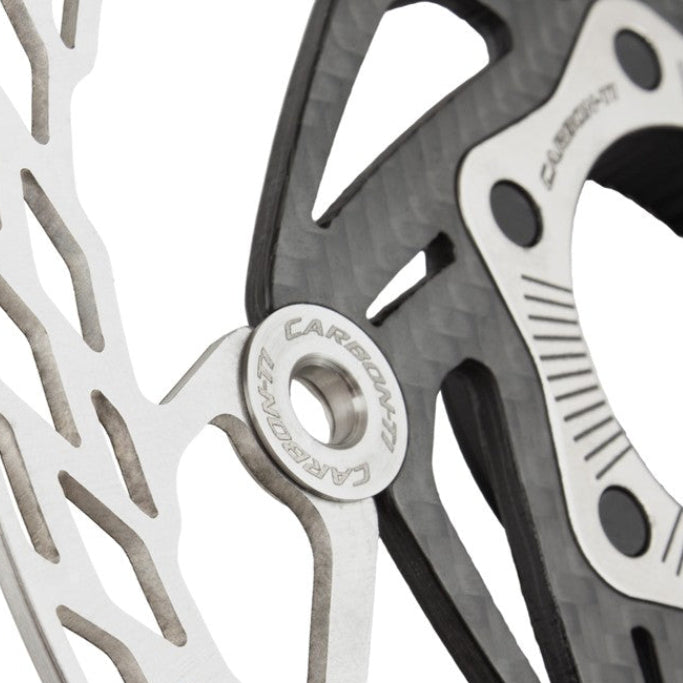

Grade 5 Titanium Hardware

Laser-engraved Grade 5 titanium rivets and washers connect the rotor's components, combining excellent strength, low weight and corrosion resistance.

Together, these materials create a technically advanced braking solution developed for performance-focused cyclists.

Semi-Floating Design. Consistent Braking Performance.

The X-Rotor SteelCarbon 3 features a semi-floating construction designed to accommodate the thermal expansion generated during braking.

This architecture allows controlled movement between the steel braking track and carbon fiber carrier, helping manage thermal stress and support consistent braking performance.

Combined with the redesigned steel track and improved heat dissipation, the rotor is engineered for reliable performance during demanding descents, technical riding and high-speed road cycling.

Precision Engineering. UCI-Compliant Safety.

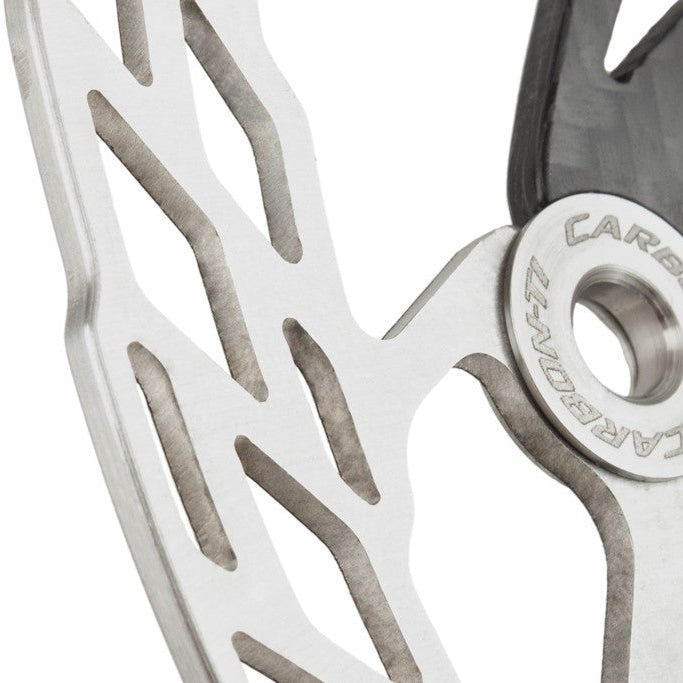

The third-generation X-Rotor introduces a refined outer profile featuring CNC-machined rounded edges.

This design improves safety and complies with UCI regulations governing disc brake rotor edge profiles.

The result is a rotor that combines advanced performance engineering with the safety requirements of competitive cycling.

Compatibility

The Carbon-Ti X-Rotor SteelCarbon 3 140mm is designed for bicycles equipped with compatible 6-bolt International Standard (IS) disc brake hubs.

Hub Compatibility

• 6-Bolt International Standard disc brake mounting systems.

• Road and mountain bike hubs featuring a compatible 6-bolt rotor interface.

• Compatible braking systems designed to accommodate a 140mm rotor with a 1.8mm braking track.

Brake Pad Compatibility

Suitable for use with all common disc brake pad compounds, including:

• Organic / Resin — Recommended by Carbon-Ti

• Semi-Metallic

• Sintered / Metallic

Important Compatibility Information

• Not compatible with Campagnolo or Fulcrum AFS mounting systems.

• This version uses the 6-bolt mounting standard and is not designed for direct installation on Center Lock hubs.

• Before installation, verify compatibility with your hub, brake caliper, frame or fork, and the manufacturer's recommended rotor diameter.

For bicycles equipped with Center Lock hubs, Carbon-Ti offers a dedicated X-Rotor SteelCarbon 3 Center Lock range.

Technical Specifications

Every Gram Matters. Every Stop Counts.

The Carbon-Ti X-Rotor SteelCarbon 3 140mm is designed for cyclists who demand exceptional weight savings, advanced materials and precise braking performance.

Combining a redesigned steel braking track with a lightweight carbon fiber carrier and titanium hardware, this third-generation rotor delivers a premium braking solution engineered for demanding road and MTB applications.

Lightweight. Precise. Race-Ready. Made in Italy.

Installation & Safety Information

Disc brake rotors are safety-critical components and should be installed by a qualified bicycle mechanic using the manufacturer's recommended procedures and torque specifications.

Always verify compatibility with the hub, brake caliper and frame or fork before installation.

Inspect the rotor regularly for wear, damage or abnormal movement. Replace the rotor if it reaches the manufacturer's minimum permitted thickness or shows signs of structural damage.

Product Disclaimer

Product images are for illustrative purposes only. Actual colors, finishes and appearance may vary slightly due to lighting conditions, photography and individual screen settings.

Product specifications, features, compatibility and availability are subject to change by the manufacturer without prior notice.

Not compatible with Campagnolo and Fulcrum AFS mounting systems.
