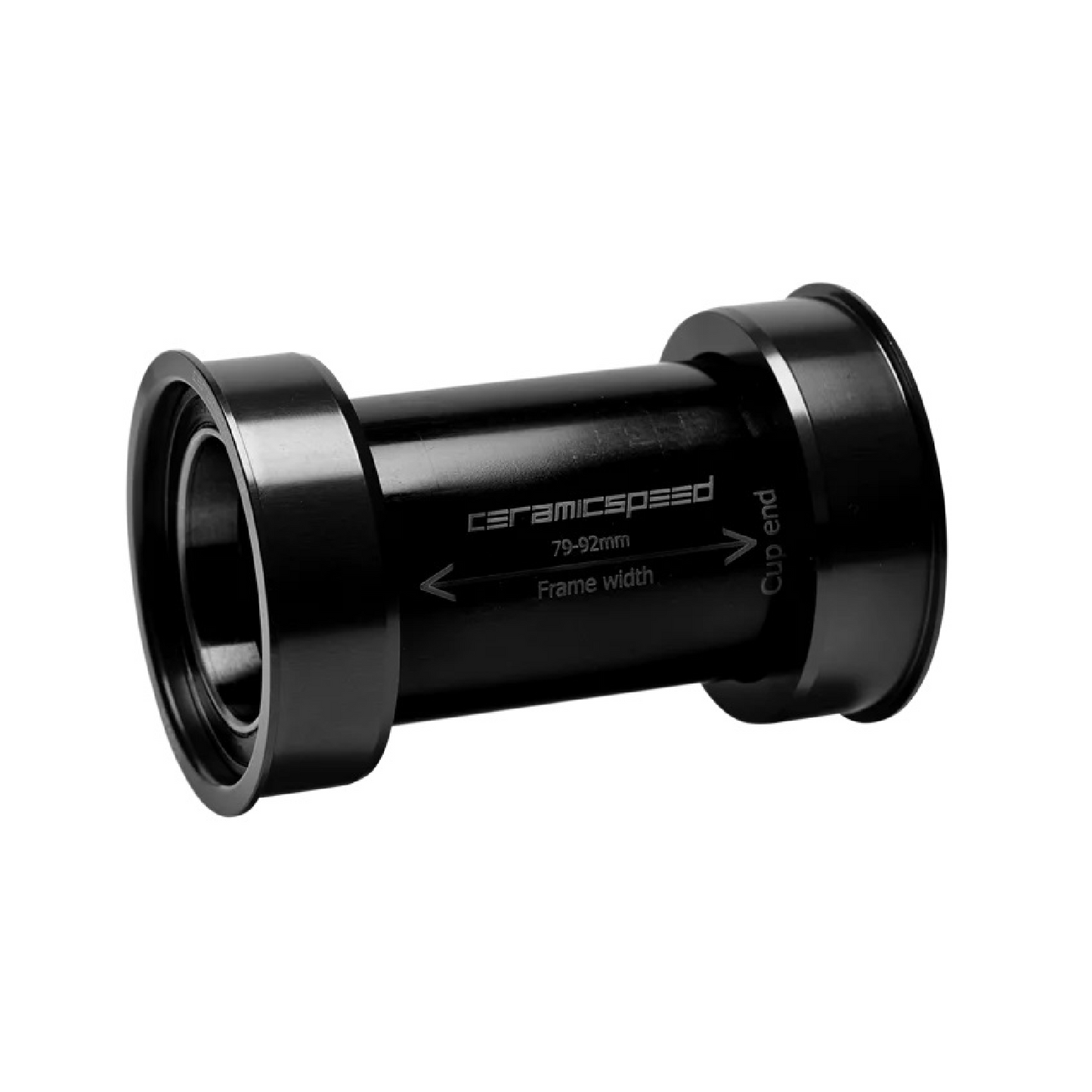

CeramicSpeed PF4630 Bottom Bracket (PF30, BB Right, BB386 EVO) 30mm Spindle Black Coated
CeramicSpeed PF4630 Bottom Bracket (PF30, BB Right, BB386 EVO) 30mm Spindle Black Coated
CERAMICSPEED bottom bracket PF4630 (PF30, BBRight, BB386 EVO) Coated | 30 mm spindle
The bottom brackets of the Danish company CeramicSpeed represent the absolute high-end solution for all racing drivers who place the highest value on lowest friction with best power transmission. This makes you faster and more effective with the same effort.
The CeramicSpeed-Speedballs balls are 15% harder than those of the competition and can absorb significantly more forces. They also have an incredibly smooth surface, thereby reducing rolling resistance to a minimum. With all these improvements, the lifespan could be increased six times.
Compared to the already high-quality standard bearings from CeramicSpeed, the "coated" version has a wafer-thin protective layer on the bearing rings. The latter become even harder, have a further 60% longer life cycle and even lower rolling resistance.
CeramicSpeed uses only the best material and the latest technologies in its manufacture in order to always achieve the highest possible quality. All products are handmade in Denmark. Manual assembly eliminates manufacturing tolerances and guarantees a 100% fit. So that you really only install the best on your bike.
With this bottom bracket you can install a crank with a 30 mm shaft in a bike frame with PF30, BBRight, or BB386 EVO bottom bracket shell.
Technical specifications:
intended use : Road, cyclocross
Bearing shell material: aluminum
Material bearing: ceramic (balls), steel (inner ring and outer ring)
Bottom bracket type: PF30, BBRight, BB386 EVO
Bottom bracket housing width: 62 mm - 92 mm
Bottom bracket housing Ø: 46 mm
Crank shaft diameter: 30 mm
Compatibility crank: BB30 or EVO386 cranks with 30 mm shaft, optimal for rotor 3D30, 3D + and flow cranks
Bearings: stainless steel CS 61806 coated
Tool holder: PressFit tool
Color: Black
Weight according to the manufacturer: not specified
Weight weighed: 88g
In the box:
1x CERAMICSPEED bottom bracket PF4630 coated
2x bottom bracket sleeves for different housing widths
2x 1 mm spacers
2x 0.5 mm spacers
1x wave washer
