DT Swiss Freehub Body - Ratchet - Campagnolo N3W - Aluminum - 12x142mm - HWYABL00S2992S
DT Swiss Freehub Body - Ratchet - Campagnolo N3W - Aluminum - 12x142mm - HWYABL00S2992S
Couldn't load pickup availability
Part Number: HWYABL00S2992S

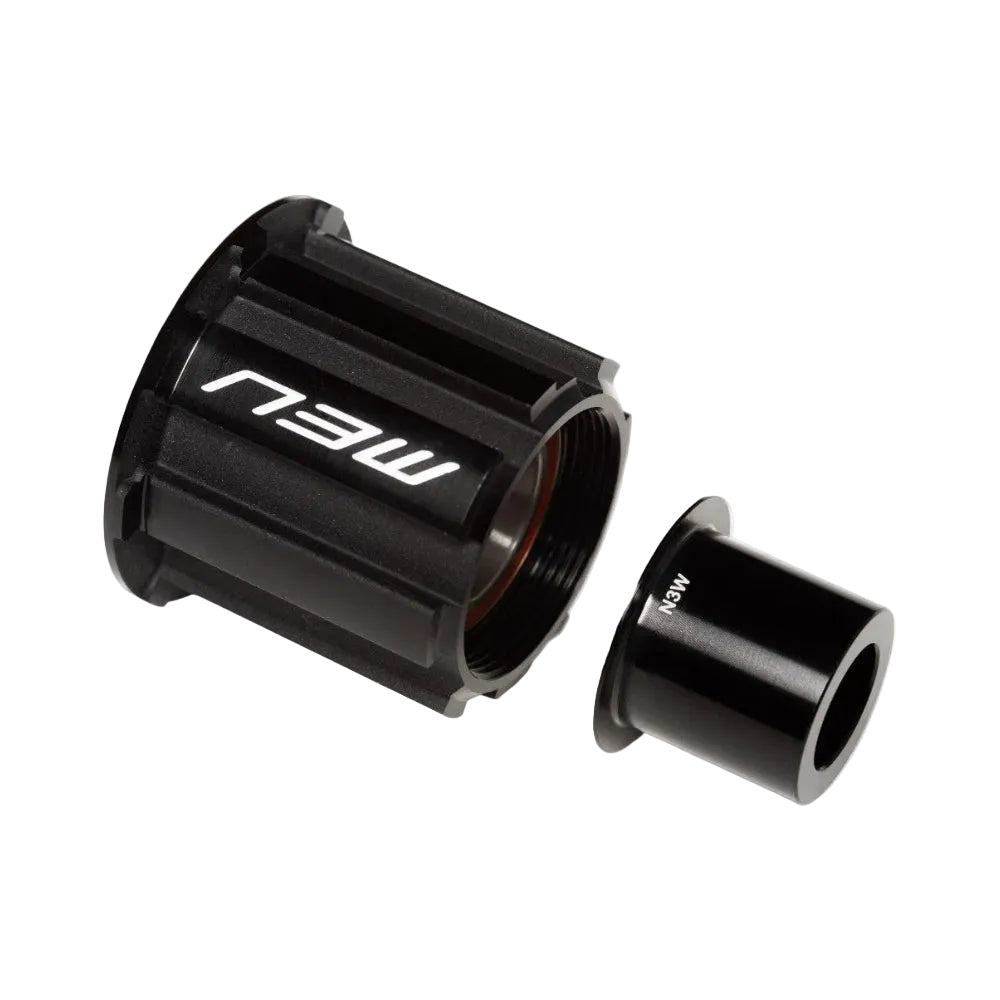

The DT Swiss Freehub Body HWYABL00S2992S is an aluminium freehub conversion kit designed to enable compatibility with Campagnolo N3W cassettes on selected DT Swiss Ratchet System rear hubs.
Designed for 12×142 mm thru-axle configurations, the freehub includes the required drive-side end cap for installation and provides compatibility with Campagnolo's latest road and gravel cassette standards, including Ekar.
Key Features
- Aluminium freehub body
- Compatible with Campagnolo N3W cassettes
- Designed for DT Swiss Ratchet System rear hubs
- Includes drive-side end cap
- For 12×142 mm thru-axle applications
- Sealed stainless steel bearings
Specifications
| Specification | Details |
|---|---|
| Part Number | HWYABL00S2992S |
| Cassette Compatibility | Campagnolo N3W (9–13 speed) |
| Hub Compatibility | DT Swiss Ratchet System hubs |
| Compatible Hub Series | 180, 190, 240 and 350 (Ratchet System) |
| Axle Standard | 12×142 mm Thru-Axle |
| Material | Aluminium |
| Bearings | Sealed stainless steel cartridge bearings |
| Weight | Approximately 56 g |
Compatibility
This freehub body is designed exclusively for DT Swiss Ratchet System hubs that use the traditional ratchet mechanism with two independent springs and two separate ratchet rings.
It is not compatible with DT Swiss Ratchet EXP hubs, which require a different freehub body. Before ordering, verify the hub system to ensure compatibility.
