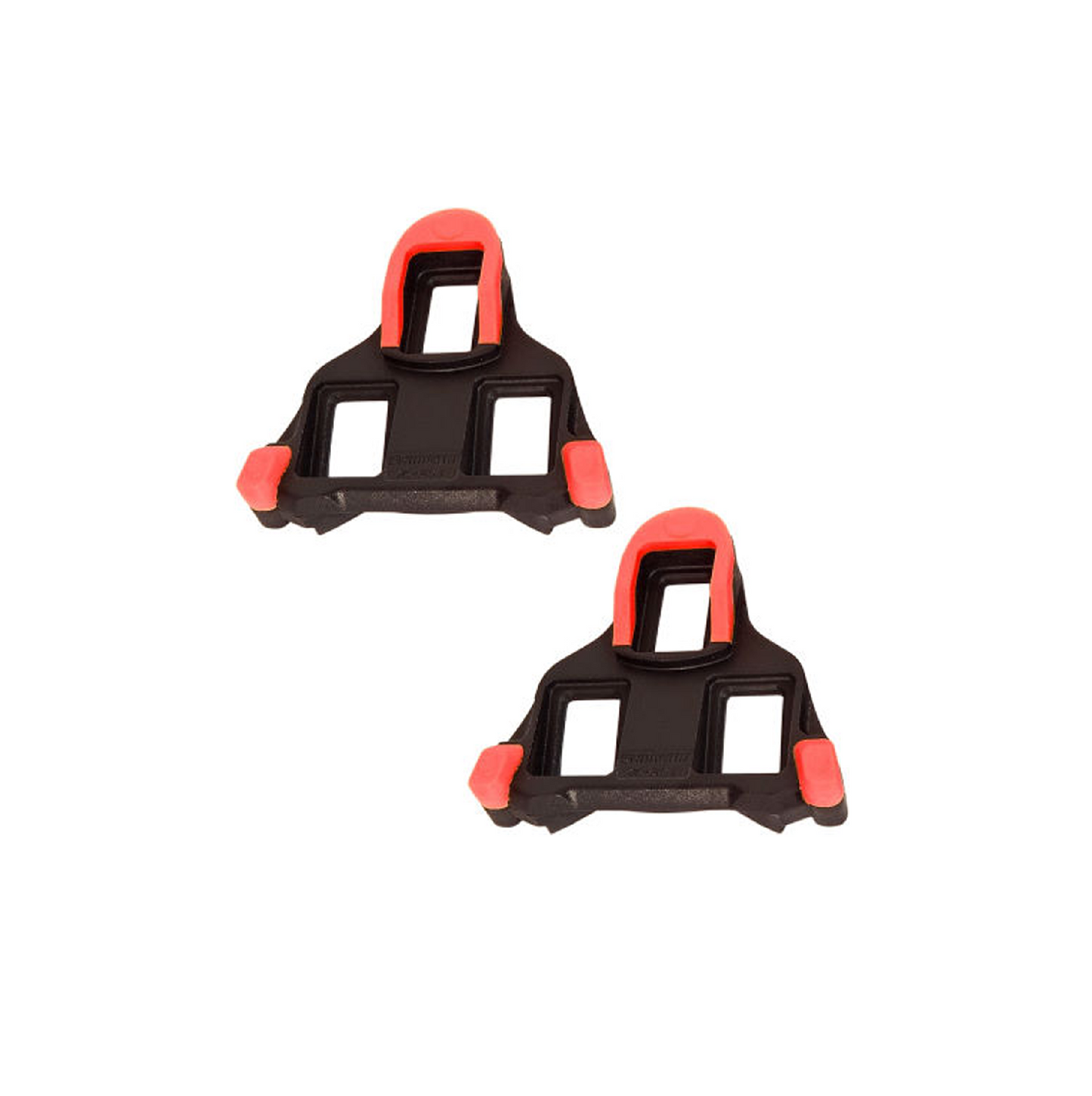

Shimano SPD-SL Cleat Set - SM-SH10 RED

Zero Float. Direct Connection. Precise Pedalling.

Designed for cyclists who prefer a completely fixed foot position, the Shimano SM-SH10 SPD-SL Cleats deliver a secure, stable connection between cycling shoes and pedals, with 0° of rotational float.

Part of Shimano's SPD-SL road pedal system, the red SM-SH10 cleats eliminate free rotational movement once engaged, providing a consistent foot position throughout the pedal stroke.

Engineered for competitive road cycling, sprinting and performance-focused riding, these cleats are particularly suited to experienced cyclists who have already established their preferred cleat position and want a direct, controlled pedalling feel.

Fixed Position. Maximum Stability.

Unlike floating cleats that allow a degree of rotational foot movement, the Shimano SM-SH10 features a completely fixed engagement position.

With 0° of float, the foot remains securely positioned relative to the pedal until the rider deliberately disengages.

This fixed interface provides a stable pedalling platform, particularly appreciated by cyclists who prefer minimal movement between their shoes and pedals during high-intensity efforts.

The result is a direct and predictable connection, provided the cleats are correctly positioned to suit the rider's individual biomechanics.

SPD-SL Technology. Engineered for Efficient Power Transfer.

Shimano's SPD-SL system uses a wide pedal-to-cleat contact area to provide stable support and consistent force transmission throughout the pedal stroke.

The SM-SH10 cleats are designed to integrate precisely with compatible Shimano SPD-SL road pedals, maintaining a secure connection during seated efforts, standing accelerations and sprinting.

Their three-bolt mounting system also allows the cleat position to be adjusted during installation, helping riders achieve the correct fore-aft, lateral and angular alignment.

Durable Construction. Reliable Engagement.

Manufactured using a durable injection-moulded composite body, the SM-SH10 cleats are designed to withstand regular engagement and disengagement.

Integrated TPU contact points help improve grip when walking short distances off the bike while protecting the cleat's engagement surfaces from direct contact with the ground.

The broad cleat profile also provides a more stable walking platform than smaller recessed-style cleats, although care should still be taken on smooth or slippery surfaces.

Controlled Release. Adjustable Pedal Tension.

Despite their fixed riding position, the SM-SH10 cleats are designed for deliberate and predictable disengagement.

A 12° release angle allows riders to unclip by rotating their heel outward.

When paired with compatible Shimano SPD-SL pedals, riders can also adjust the pedal's spring retention tension to suit their experience and preferred release resistance.

This combination provides secure engagement while allowing the release mechanism to be configured appropriately.

Three SPD-SL Options. Choose Your Preferred Float.

Shimano offers three SPD-SL cleat configurations to accommodate different riding preferences and biomechanics:

• SM-SH10 Red – 0° Float: Completely fixed foot position with no rotational movement.

• SM-SH12 Blue – 2° Float: Limited rotational movement with a front-centred pivot.

• SM-SH11 Yellow – 6° Float: Greater rotational freedom for riders who prefer additional movement.

The SM-SH10 is the most restrictive option and is generally recommended for experienced cyclists who are comfortable with a fixed cleat setup.

Technical Specifications

Package Contents

• 2 × Shimano SM-SH10 SPD-SL Red Cleats

• Cleat mounting hardware

Advisory Note

Pedal Compatibility: The Shimano SM-SH10 cleats are designed specifically for Shimano SPD-SL road pedals. They are not compatible with Shimano two-bolt SPD mountain bike pedals or other pedal systems unless explicitly approved by the manufacturer.

Fixed Cleat Position: These cleats provide 0° of rotational float, meaning the foot cannot rotate freely while engaged. This configuration may not suit every rider, particularly those who require additional movement to accommodate their natural pedalling biomechanics.

Professional Bike Fitting Recommended: Precise cleat positioning is especially important when using fixed-mode cleats. Incorrect alignment may cause discomfort or unnecessary stress on the knees, ankles and other joints. A professional bike fitting is recommended before switching from floating cleats.

Installation: Follow Shimano's official installation instructions and specified tightening torque. Ensure the cleats are correctly positioned and all mounting bolts are securely fastened before riding.

Release Mechanism: The 12° release angle refers to the movement required to disengage from the pedal and should not be confused with rotational float during pedalling. Always familiarise yourself with the engagement and release mechanism before riding on public roads.

Pedal Tension: Retention tension is adjusted at the compatible pedal, not the cleat. Riders unfamiliar with clipless pedals should begin with a lower retention setting and practise clipping in and out in a safe environment.

Wear & Maintenance: Inspect the cleats regularly for excessive wear, cracks or damage. Replace worn cleats promptly, as damaged engagement surfaces can affect pedal retention and release performance.

Walking Safety: Although the integrated TPU contact points improve grip, SPD-SL cleats are primarily designed for cycling. Take care when walking on wet, smooth or uneven surfaces.

Performance: A fixed cleat position provides a more restricted foot interface but does not guarantee increased power output or improved efficiency for every rider. Proper fit and individual biomechanics remain essential.

Zero Float. Total Control. Shimano SM-SH10 SPD-SL.
