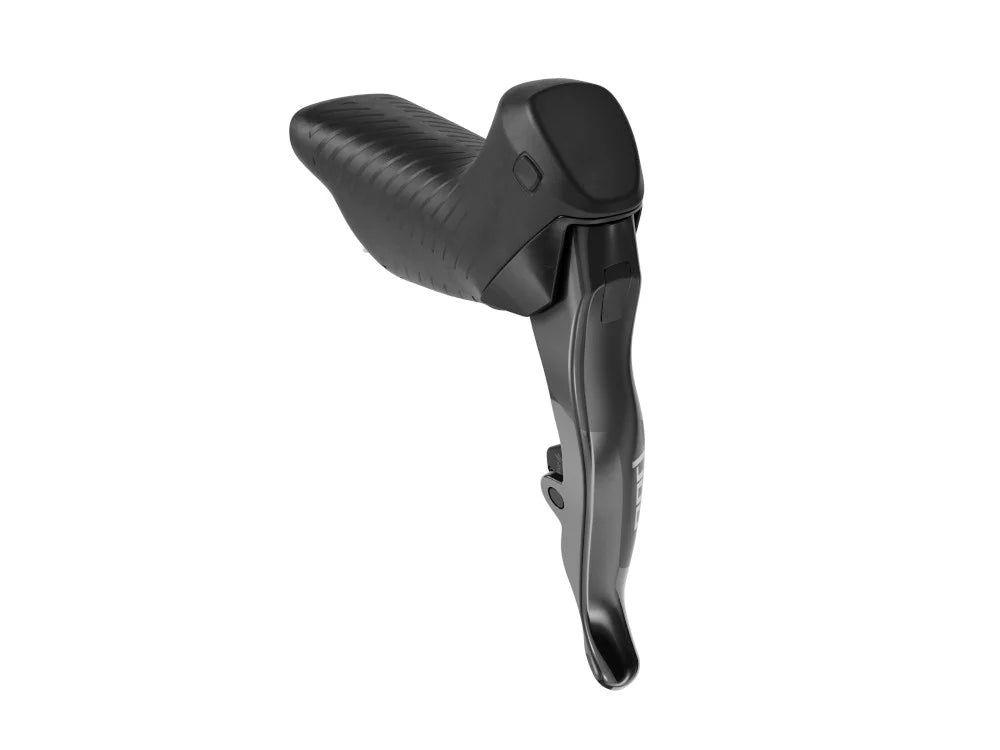

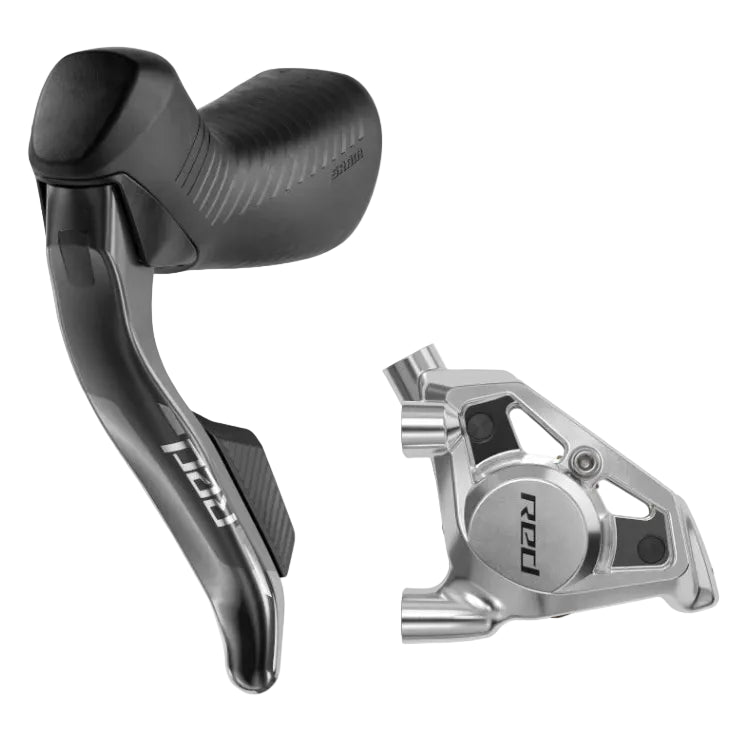

Sram RED AXS HRD Shift Brake System - Front left

Redefined control. One-finger braking. Fully wireless performance.

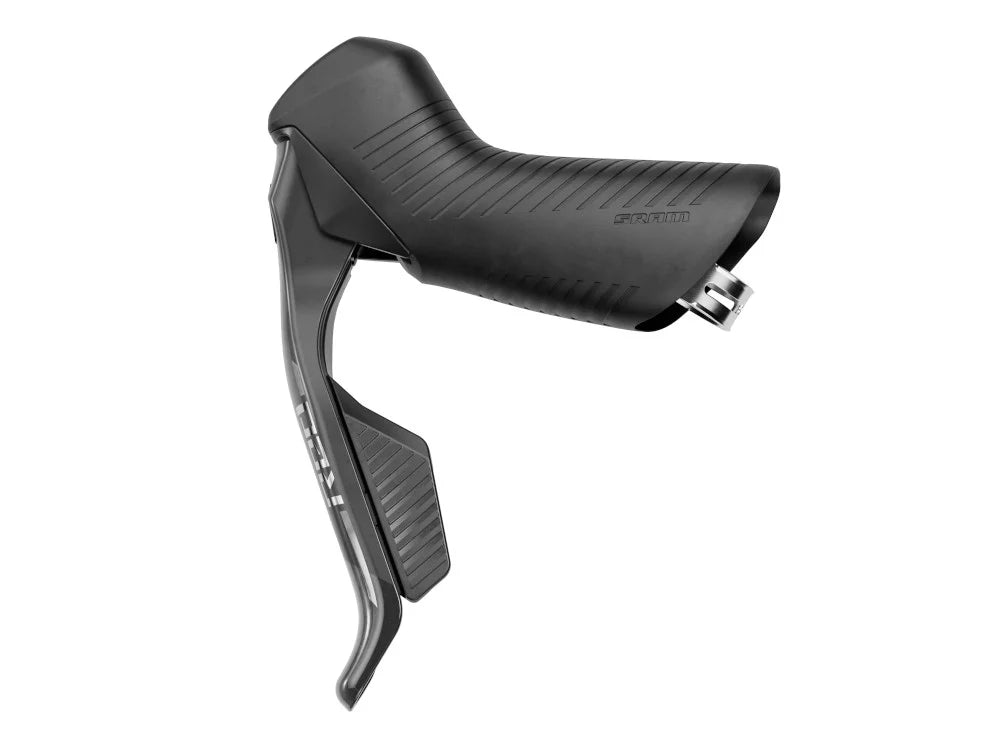

With the new AXS HRD shift/brake system, SRAM delivers its most significant evolution within the RED groupset to date. Both the hood shape and the carbon brake lever have been completely redesigned to improve ergonomics, control, and braking power across a wider range of hand sizes.

Thanks to a revised pivot point and the relocation of the primary piston into the shifter body, braking effort is dramatically reduced. The result: powerful, precise braking with just one finger, whether riding on the hoods or in the drops.

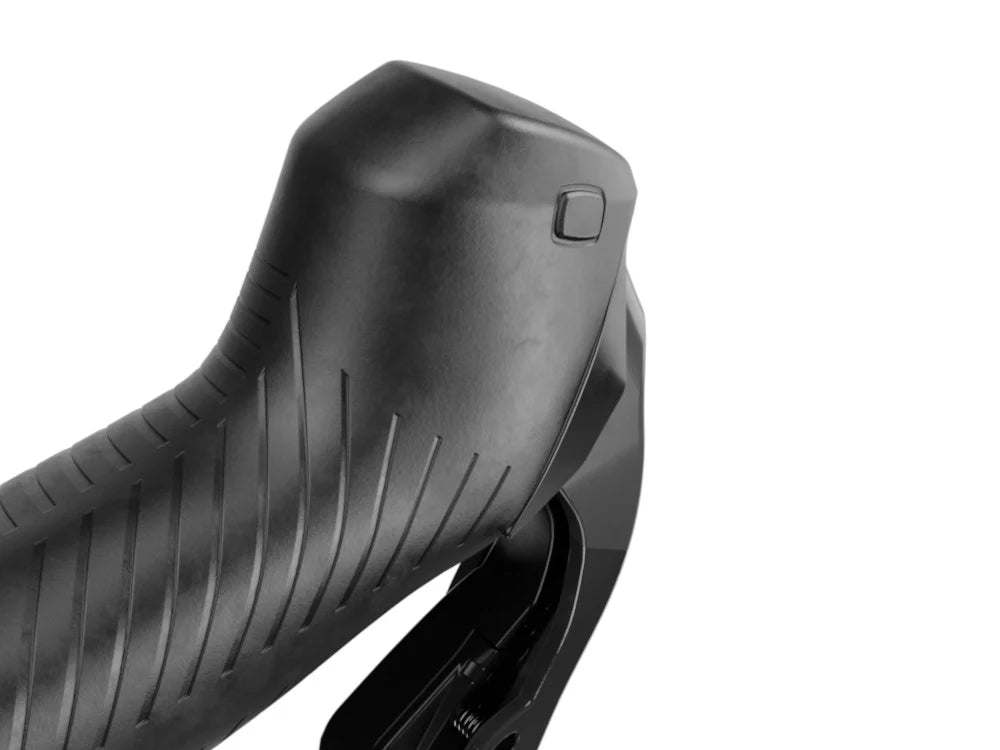

An additional shift button integrated into the hood adds extra functionality, allowing control of ANT+-compatible bike computers. The textured main shift paddles retain the proven eTap logic: one paddle for upshifts, one for downshifts, and both together to shift the front derailleur. Shifting behavior can be fully customized via the SRAM AXS app, and the system supports integration of SRAM Wireless Blip Shifters.

Brake lever reach and contact point are independently adjustable, ensuring a perfect setup without the lever ever touching the handlebar.

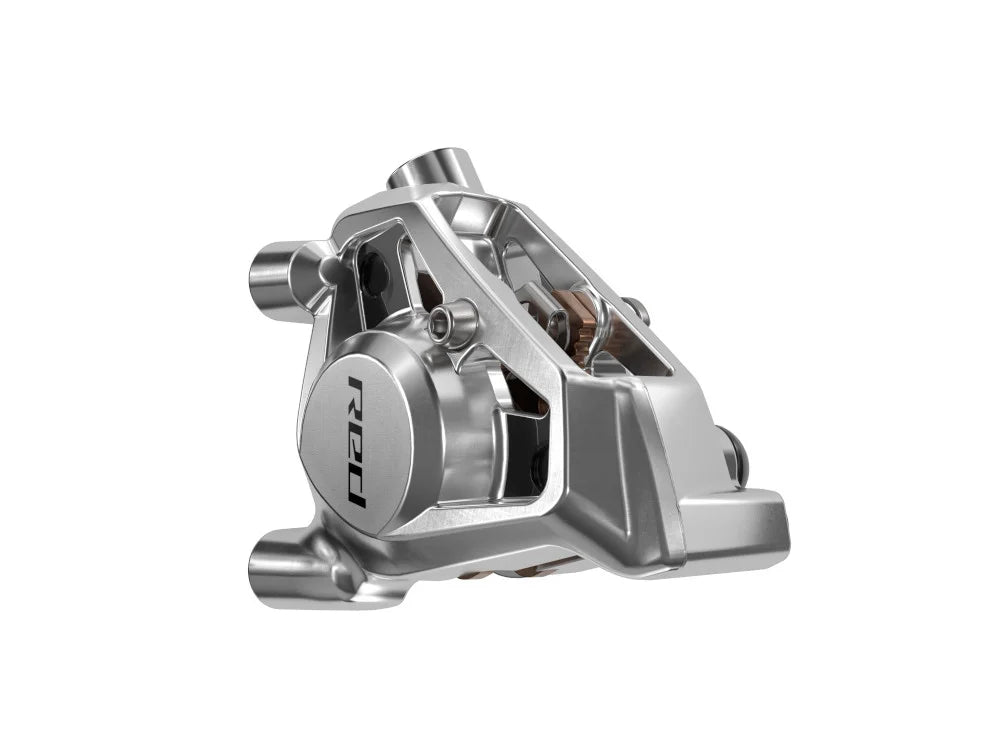

The newly redesigned brake calipers are stiffer, lighter, and more efficient, featuring a wider pad gap for easier installation and drag-free performance. Bleeding Edge technology ensures clean, simple bleeding. Thanks to its slimmer overall design, the RED HRD system saves an impressive 83 grams compared to the previous generation.

Note: This shift lever is compatible only with SRAM AXS components.

Technical Specifications

- Materials: Aluminum, carbon, titanium

- System: Shift lever | brake lever for hydraulic disc brake

- Lever Position: Left

- Brake Position: Front

- Drivetrain Compatibility: All SRAM AXS front & rear derailleurs

- Battery: CR2032

- Brake Caliper Mount: Flat Mount (front)

- Brake Fluid: DOT 5.1

- Brake Hose Length: 950 mm

- Brake Pads: Organic

- Connectivity: Bluetooth, ANT+

- Color: Black / Silver

Weight (manufacturer): approx. 345 g
(including shift/brake lever, brake caliper, filled hose, and mounting hardware)

Delivery

- 1 × SRAM RED AXS HRD shift/brake lever (left, front)
- 1 × Connection kit
- 1 × Front flat mount adapter (140 / 160 mm)
- 2 × M5 × 15 mm brake caliper fixing bolts
- 2 × M5 × 32 mm brake caliper fixing screws
