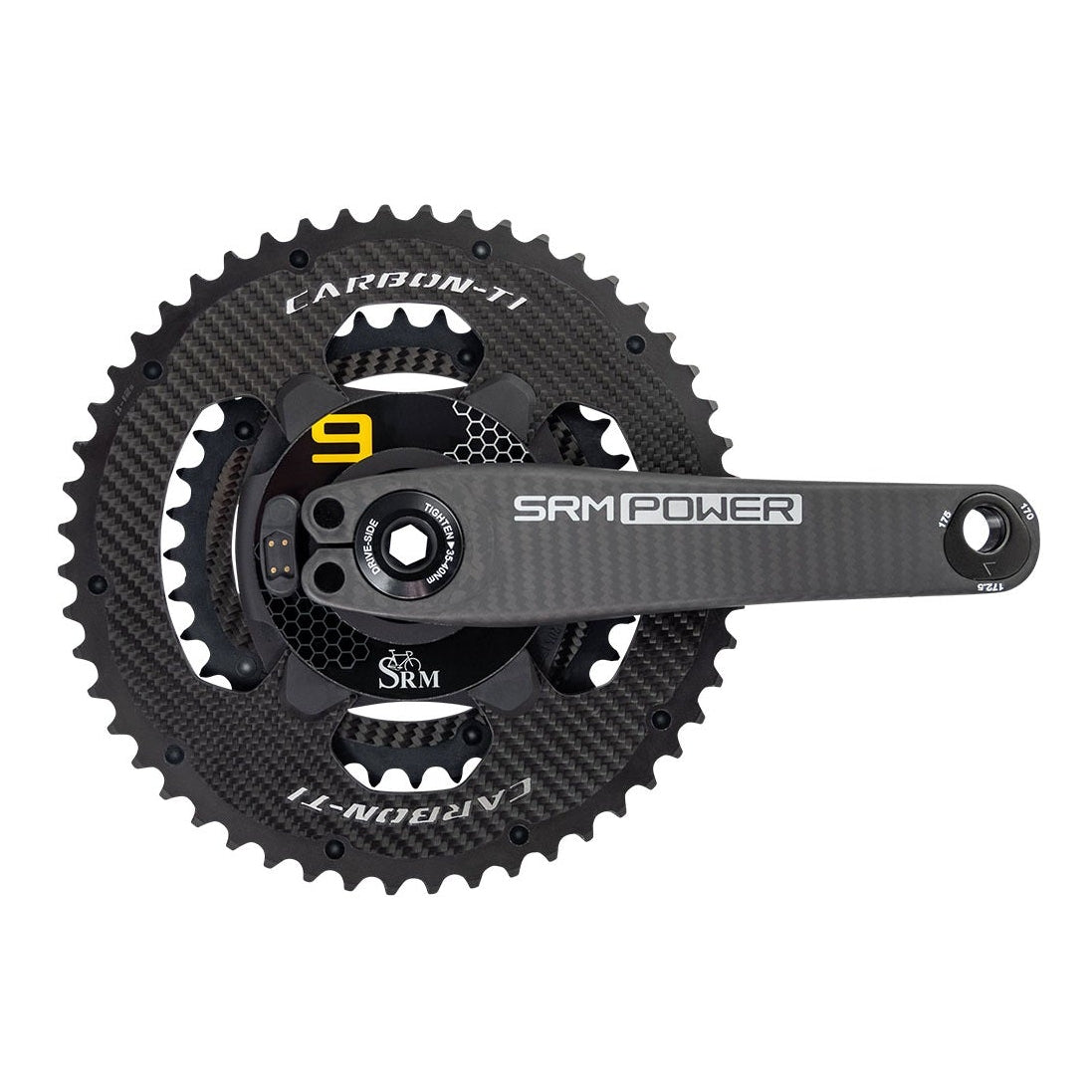

SRM Power meter - Origin - LOOK Carbon Cranks 165/167,5/170 - Road - Carbon Ti Chainrings 54/40 - DUB spindle White Decal

The SRM Origin Road Carbon PM9 is a dual-sided crank spider power meter engineered for riders seeking highly accurate power measurement within a modular drivetrain platform. Manufactured to order in Germany, the PM9 combines SRM's latest power measurement technology with carbon crank arms, interchangeable spindles, and configurable chainring options to suit a wide range of road bike frames and groupsets.

Now in its ninth generation, the Origin PM9 features both ANT+ and Bluetooth® Low Energy connectivity for compatibility with most modern cycling computers and training applications.

Key Features

• Dual-sided power measurement with ±1% accuracy
• 9th generation SRM crank spider power meter
• Carbon crank arms
• Modular crank, spider, spindle and chainring system
• Rechargeable battery with 100+ hours of runtime
• Integrated magnet-free cadence measurement
• Automatic temperature compensation
• Left/right power balance data
• ANT+ and Bluetooth® LE connectivity
• Made in Germany

Designed Around a Modular Platform

The Origin PM9 is built around a fully modular architecture, allowing the power meter spider, crank arms, spindle and chainrings to be configured according to the rider's requirements.

The interchangeable spindle system supports multiple bottom bracket standards, while the 110 mm bolt circle allows compatibility with a broad selection of 4-bolt chainrings. This design also enables future component changes without replacing the complete power meter system.

Dual-Sided Power Measurement

The PM9 measures power at the crank spider using a combination of torque and angular velocity data to deliver highly accurate power readings across a wide cadence range.

The system also provides:

• Total power output
• Left/right power balance
• Cadence
• Pedal smoothness metrics (supported devices)

Its measurement method maintains accuracy when used with both round and oval chainrings.

Look Carbon Crank Arms

Designed for the SRM Origin platform and feature LOOK's Trilobe Technology, allowing a single crank arm to be adjusted between three crank lengths.

• 165 mm
• 167.5 mm
• 170 mm

The adjustable design allows crank length changes without replacing the crank arms, offering increased flexibility for rider preference, bike fitting or position adjustments.

Within the SRM Origin range, the LOOK Carbon Crank Arms provide the narrowest available Q-Factor, contributing to a compact pedalling stance.

Broad Compatibility

The modular Origin platform is compatible with the majority of modern road bike frames and drivetrains.

Features include:

• 110 mm BCD
• Support for 1x and 2x drivetrains
• SRAM DUB spindle


Wireless Connectivity

The Origin PM9 transmits ride data through both ANT+ and Bluetooth® Low Energy, making it compatible with most current cycling computers, smartphones and indoor training platforms.

Compatible with popular training software including:

• Garmin
• Wahoo
• TrainingPeaks
• Strava
• Garmin Training Center
• Other ANT+ and Bluetooth-compatible platforms

Rechargeable Battery

The integrated rechargeable battery provides more than 100 hours of operating time per charge.

Charging is performed through SRM's magnetic charging interface.

Automatic Temperature Compensation

An integrated temperature sensor continuously compensates for environmental temperature changes to help maintain measurement accuracy throughout varying riding conditions.

Integrated Cadence Measurement

Cadence is measured directly by the power meter, eliminating the need for an external cadence sensor or frame-mounted magnet.

Built for Long-Term Reliability

Positioning the power meter inside the crank spider provides excellent protection from impacts, debris and environmental exposure.

The sealed construction is designed for reliable operation in wet, dusty and demanding riding conditions while maintaining consistent performance over time.

Factory Calibration

Every SRM Origin PM9 is individually assembled and calibrated at the SRM factory in Jülich, Germany before shipment.

Routine zero offset calibration can be performed through any compatible cycling computer or smartphone application before riding.

Specifications

In the Box

• SRM Origin Road Carbon PM9 power meter
• Carbon crank arms
• Spindle
• Chainrings
