TriPeak PF30 68mm 3-in-1 Bottom Bracket Road

TriPeak PF30 68mm 3-in-1 Bottom Bracket Road

Dhs. 390.00 AED
Dhs. 390.00 AED
Sale Sold out
Tax included. Shipping calculated at checkout.
PF30 68mm (Road) : 3-in-1
  • 3-in-1 Core System (HTII / DUB / 3D+)
  • P05 Steel Bearing
  • ZeroCreak Eliminate Noise Disturbances
  • Patented Twist-Fit Design
  • Black Color
The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

The Twist-Fit design accommodates  press-fit BB specificized frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.

The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.

PF30 68mm (Road) : 3-in-1
 Type  Road Bike

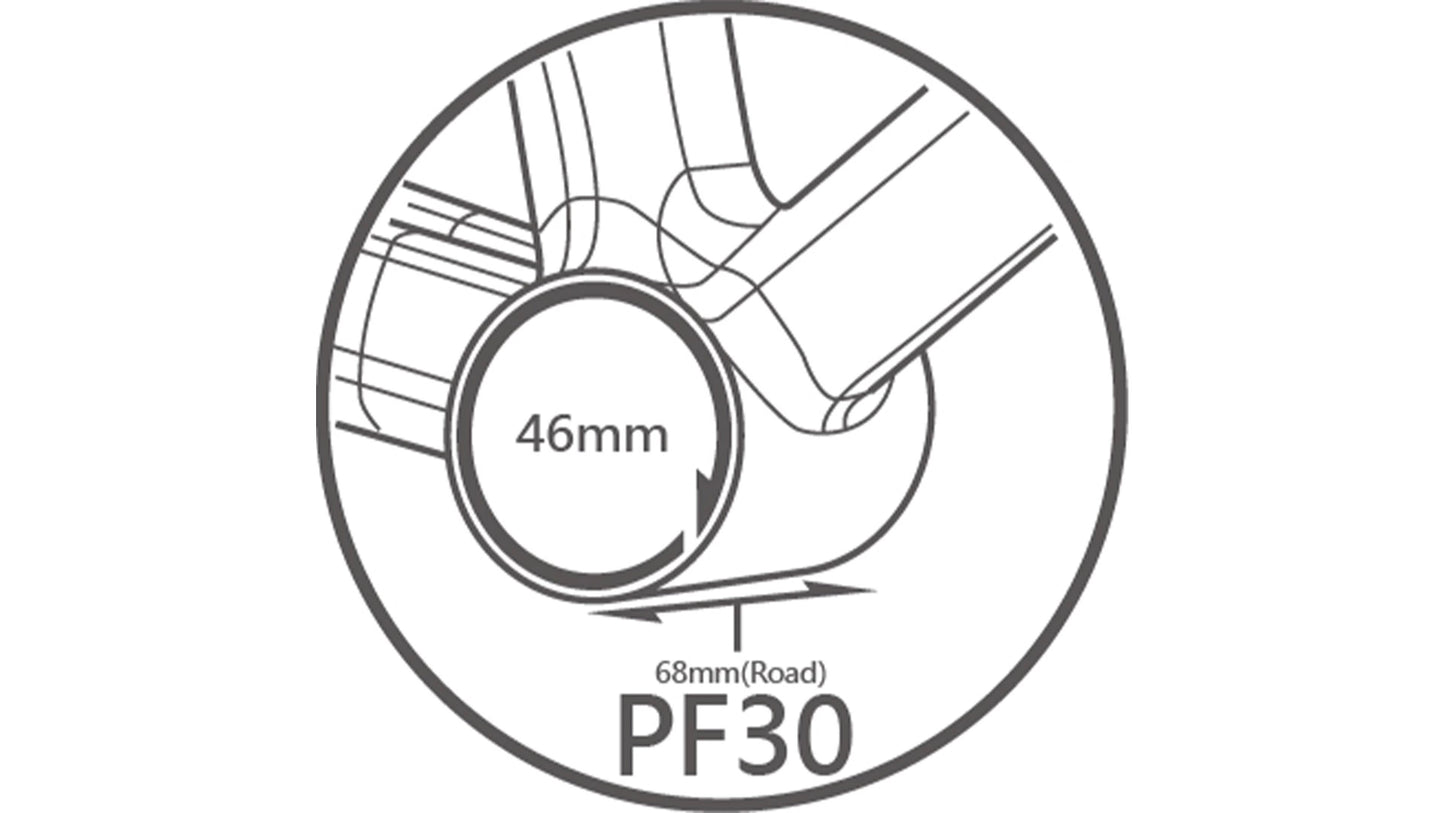

 Frame Spec  PF30
 DIA.46mm x Width 68mm
 Crank Spec  SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing  P05 Steel Bearing
 Tool Notch  Notch : 12T
 O.D. : 50mm
 Material  Cup : Alloy 6061
 Snug Ring : PA+GF composite material
 Accessories  30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Color  Black
 Weight  P05 : 136g/set (w/o cap)
