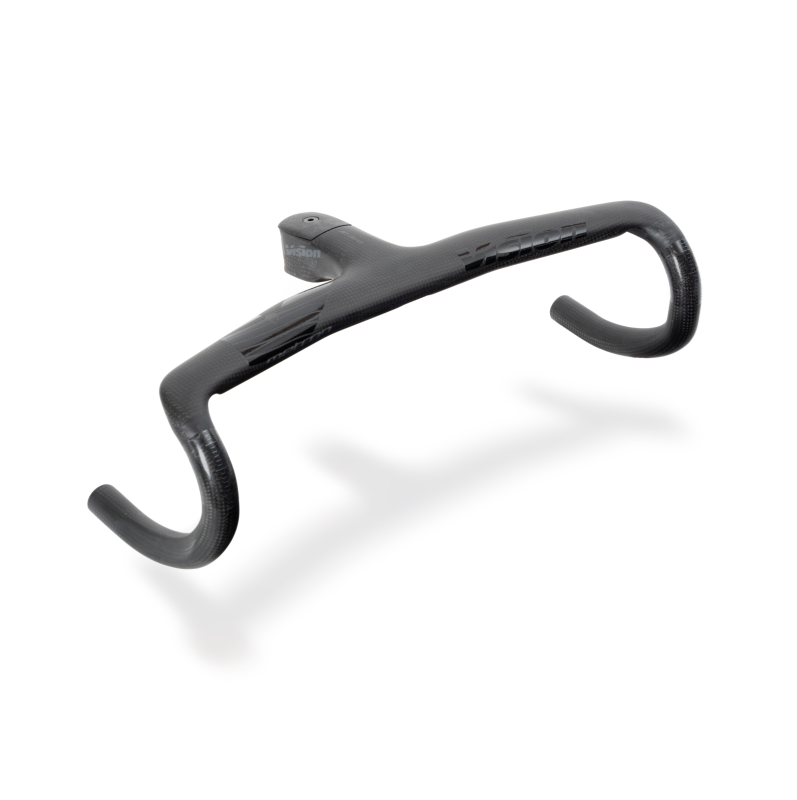

VISION HB METRON 5D ACR EVO Integrated Handlebar

VISION HB METRON 5D ACR EVO Integrated Handlebar

Dhs. 2,800.00 AED
Dhs. 2,800.00 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

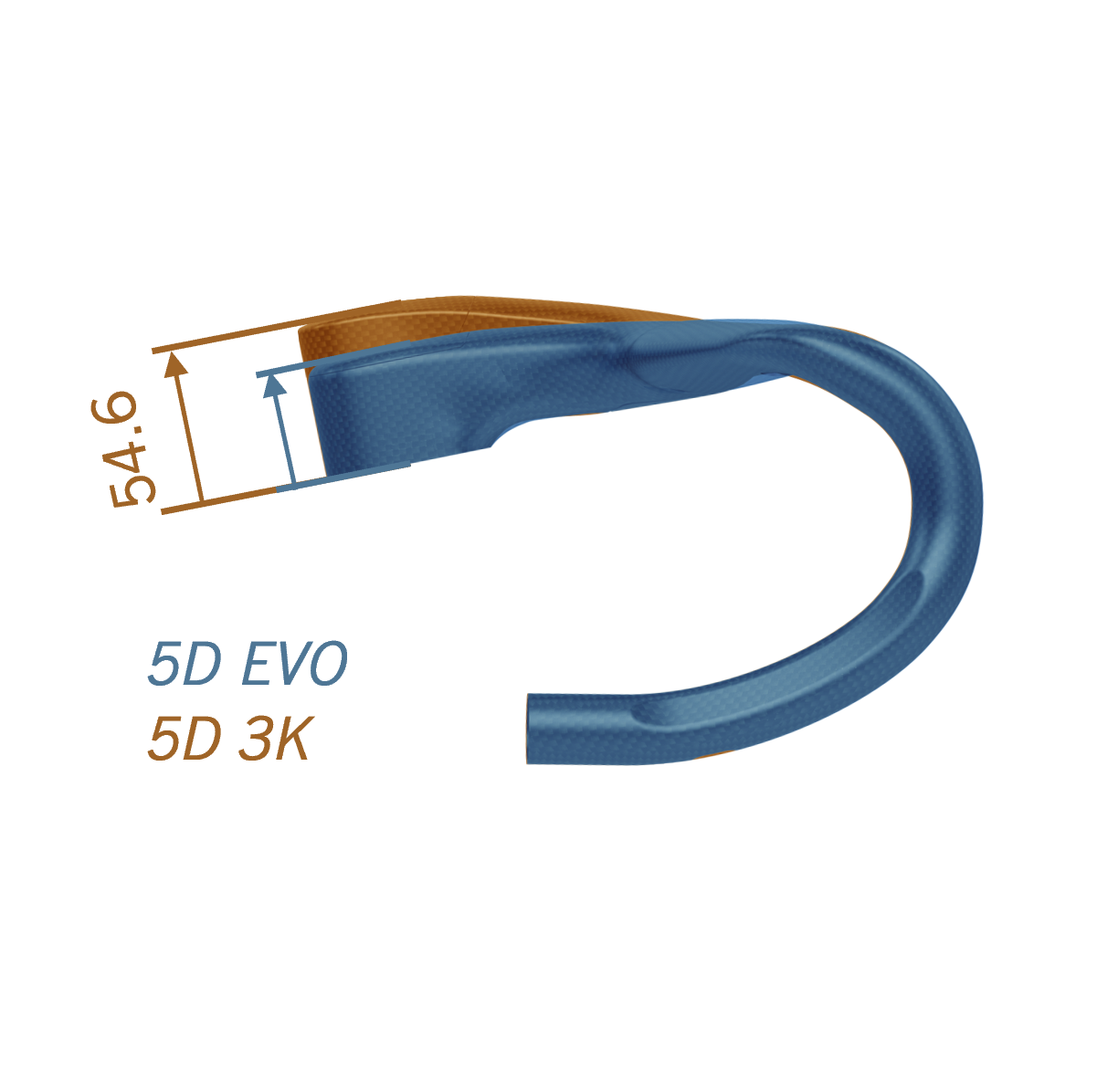

The 5D EVO retains all the aspects that made the 5D family unique, starting from the 10° forward angle, useful for improving breathing during the toughest climbs, to the integrated cable routing, introduced in 2019 with the ACR version. However, it's updated to be even lighter, weighing only 320g, while simultaneously increasing stiffness and vibration absorption capacity, with the goal of efficiently transferring maximum control of the bike over every inch of asphalt for the cyclist. Aerodynamics have also been enhanced, lowering the stack by 1.5cm. But we didn't stop at creating the perfect handlebar for racing; we wanted it to be the best for passionate cyclists who want to grasp the dream of riding like their champions, without having a product overly focused on pure performance. That's why we modified the ergonomics, introducing an additional size, adjusting the grip depth (L-XL), in this way everyone can feel perfectly comfortable on the bike

Features

  • Aerodynamic integrated Cable Routing (ACR)
  • All carbon construction
  • Di2 compatible with integrated junction box compartment and wiring conduits
  • 5mm offset drops providing wider, more stable sprinting platform and allowing faster transitions from hoods to drops
  • Stem angle: -6°

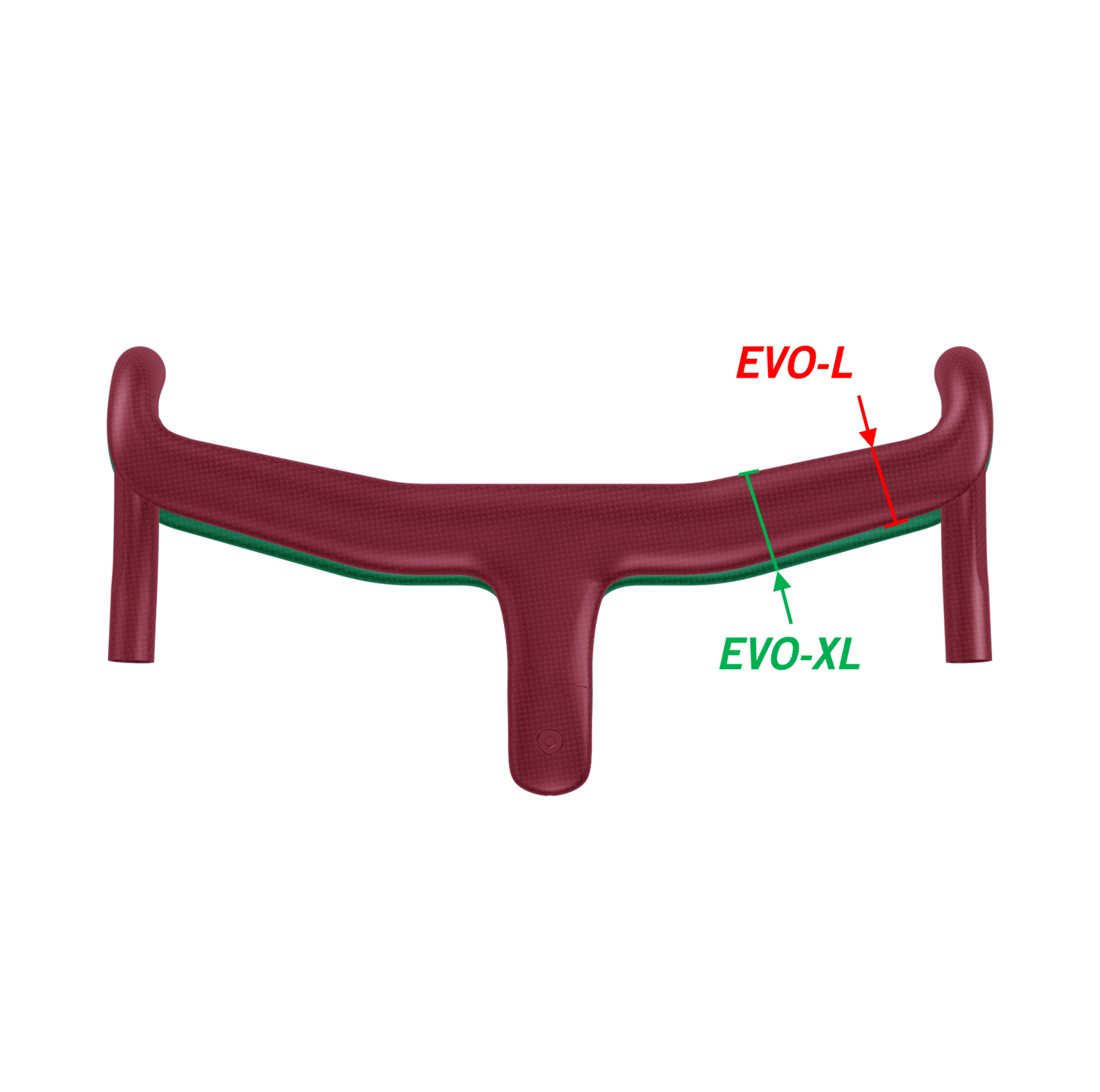

SIZES

EVO-XL
  • -6° X L100×W440mm (c-c),
  • -6° X L120×W420mm, 440mm (c-c),
  • -6° X L130×W420mm, 440mm (c-c),
  • -6° X L140×W420mm (c-c)
EVO-L
  • -6° X L90×W380mm, 400mm (c-c),
  • -6° X L100×W380mm, 400mm, 420mm (c-c),
  • -6° X L110×W400mm, 420mm (c-c),
  • -6° X L120×W400mm (c-c) Compact 125mm drop, 80mm reach Forward angle 10°

FINISH

  • Carbon 3K finish Color graphics - black

WEIGHT

  • 320 grams (110 x 420mm).

Specifications

Type Handlebars
Technology ACR
Color black
Series METRON
Discipline ROAD
Material Carbon
Weight (gr) 0.3
Shape Design compact



References

Code Type
670-0455027030 VISION HB METRON 5D ACR EVO 100x380 L
670-0455001030 VISION HB METRON 5D ACR EVO 100x400 L
670-0455002030 VISION HB METRON 5D ACR EVO 100x420 L
670-0455015030 VISION HB METRON 5D ACR EVO 110x400 L
670-0455003030 VISION HB METRON 5D ACR EVO 110x420 L
670-0465008030 VISION HB METRON 5D ACR EVO 110x440 XL
670-0455007030 VISION HB METRON 5D ACR EVO 120x400 L
670-0465004030 VISION HB METRON 5D ACR EVO 120x420 XL
670-0465005030 VISION HB METRON 5D ACR EVO 120x440 XL
670-0455014030 VISION HB METRON 5D ACR EVO 130x400 L B4
670-0465009030 VISION HB METRON 5D ACR EVO 130x420 XL
670-0465006030 VISION HB METRON 5D ACR EVO 130x440 XL
670-0465021030 VISION HB METRON 5D ACR EVO 140x420 XL
670-0455017030 VISION HB METRON 5D ACR EVO 80x360 L
670-0455026030 VISION HB METRON 5D ACR EVO 80x380 L
670-0455016030 VISION HB METRON 5D ACR EVO 90x380 L
670-0455010030 VISION HB METRON 5D ACR EVO 90x400 L B4
